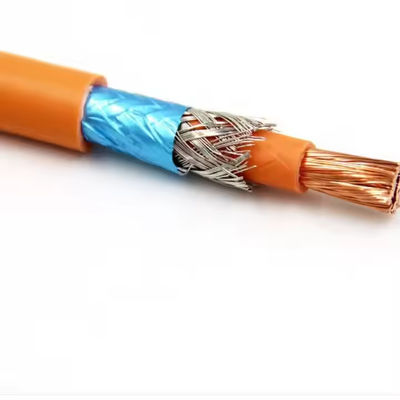

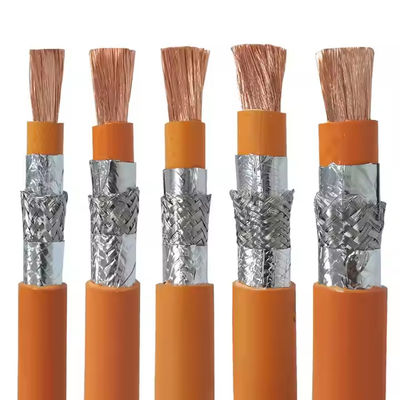

• Conductor: Typically made of high-quality copper or aluminum conductors. Copper is often preferred due to its excellent electrical conductivity, which ensures minimal energy loss during the charging process. The conductor is sized appropriately to handle the high currents required for fast charging of electric vehicles, usually ranging from a few tens of amps to over a hundred amps depending on the charging level.
• Insulation: Surrounding the conductor is a layer of high-quality insulation material. This insulation is designed to withstand the high voltages involved, which can range from several hundred volts to over a thousand volts in some fast-charging scenarios. Common insulation materials include cross-linked polyethylene (XLPE) which offers good electrical insulation properties, mechanical strength, and resistance to heat and environmental factors.
• Shielding: One of the key features of these cables is the shielding layer. It is usually made of a conductive material such as braided copper wire or a metallic foil. The shielding serves multiple purposes. Firstly, it helps to prevent electromagnetic interference (EMI) from affecting the proper functioning of the cable and the associated charging equipment. Secondly, it also protects the surrounding environment and other electronic devices from the electromagnetic fields generated by the high voltage and current flowing through the cable.
• Jacket: The outermost layer is the jacket, which provides physical protection to the internal components of the cable. It is made of a durable and flexible material such as thermoplastic elastomers (TPE) or polyvinyl chloride (PVC). The jacket is designed to be resistant to abrasion, chemicals, and weather conditions, ensuring the long-term durability of the cable even when exposed to harsh outdoor environments during charging.

• High Voltage and Current Capacity: These cables are capable of handling the high voltages and currents required for different levels of EV charging. For example, in a standard Level 2 charging, the cable may need to handle voltages up to 240 volts and currents up to 32 amps or more. In fast-charging scenarios like DC fast charging, voltages can be much higher (e.g., 400 volts to 800 volts or even higher in some cases) and currents can exceed 100 amps, allowing for a significantly reduced charging time compared to slower charging methods.
• Low Electrical Resistance: Due to the high-quality conductors used, the cable has low electrical resistance. This means that less energy is dissipated as heat during the charging process, resulting in more efficient charging and reducing the overall energy consumption.
• EMI Protection: The shielding effectively reduces electromagnetic interference, ensuring that the charging process is not disrupted by external EMI sources and also preventing the cable from emitting excessive EMI that could interfere with other nearby electronic devices.
• Safety: The combination of proper insulation, shielding, and a durable jacket ensures the safety of both the vehicle occupants and the people handling the cable during the charging operation. The insulation prevents electrical shocks by keeping the high voltage contained within the cable, while the shielding and jacket protect against potential hazards such as short circuits and physical damage.

• Home Charging: For electric vehicle owners who charge their vehicles at home using a Level 1 or Level 2 charging station, these cables are an essential component. They connect the charging station installed in the garage or driveway to the vehicle's charging port.
• Public Charging Stations: At public charging facilities, whether they are slow-charging stations in parking lots or fast-charging stations along highways, these cables are used to provide the necessary electrical connection between the charging infrastructure and the electric vehicles.
• Commercial and Fleet Charging: In commercial settings such as car rental companies, delivery fleets, and corporate vehicle fleets that use electric vehicles, these cables are used to charge multiple vehicles efficiently and safely.

​
