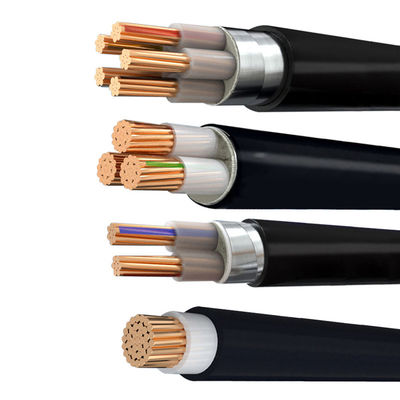

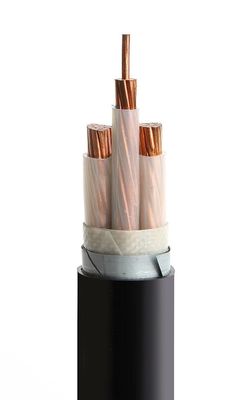

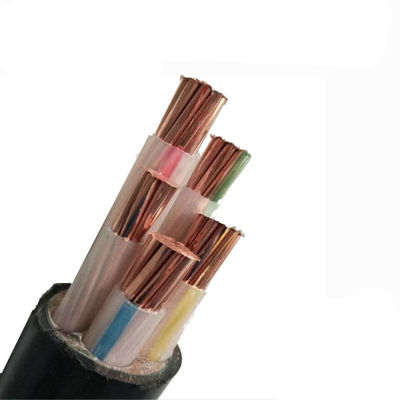

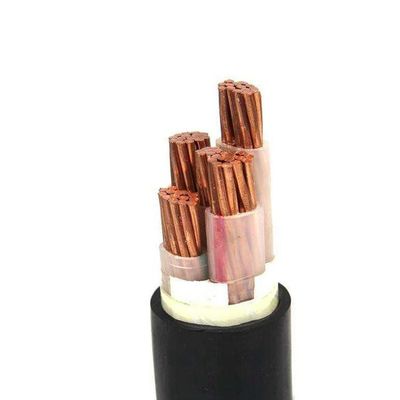

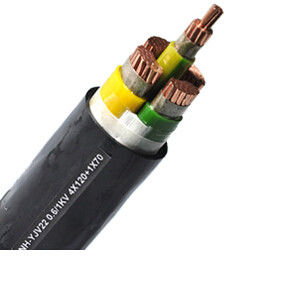

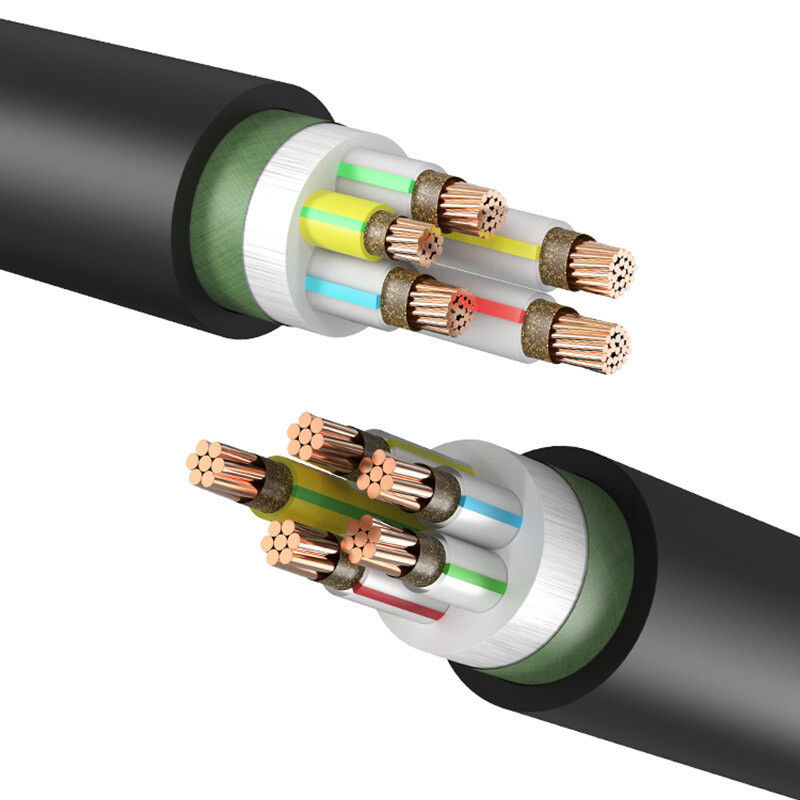

Customized Length YJV XLPE Power Cables for Superior Electrical Performance

Brand Name:	Yuanhui
Model Number:	YJV
MOQ:	100 meters
Price:	$0.50 - $5.00/meters
Packaging Details:	100 meters each roll,then putted on the pallet

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Type:

Application:

Industrial Engineering

Conductor Material:

Copper

Conductor Type:

Stranded

Insulation Material:

Rated Voltage:

450V-750V

Sample:

Acceptable

Color:

Customized Color

Jacket:

PVC XLPE

Size:

Customized Size

Conductor:

Copper Core

Length:

Customized Length

Advantage:

15 Years Production Experience

Rated Voltage:

450/750

Insulation:

PVC Insulation Cable

Core:

Multicore

Port:

QINGDAO Port,Shandong

Supply Ability:

10000000 Meter/Meters per Month

Product Description

Specification

Nominal cross-sectional area of conductor(mm²）	Nominal thickness of insulation(mm)	Nominal thickness of sheath(mm)	Average Approx overall diameter(mm)	_{Approx weight（kg/km）}
1✖1.5	0.7	1.4	6	47
1✖2.5	0.7	1.4	6	59
1✖4	0.7	1.4	7	77
1✖6	0.7	1.4	7	99
1✖10	0.7	1.4	8	147
1✖16	0.7	1.4	9	209
1✖25	0.9	1.4	11	304
1✖35	0.9	1.4	12	400
1✖50	1.0	1.4	13	524
1✖70	1.1	1.4	15	732
1✖95	1.1	1.5	17	991
1✖120	1.2	1.5	18	1230
2✖1.5	0.7	1.8	10	105
2✖2.5	0.7	1.8	10	134
2✖4	0.7	1.8	11	173
2✖6	0.7	1.8	12	226
2✖10	0.7	1.8	15	342
2✖16	0.7	1.8	17	488
2✖25	0.9	1.8	21	711
2✖35	0.9	1.8	23	927
2✖50	1.0	1.8	21	1096
2✖70	1.1	1.8	23	1518
2✖95	1.1	2.0	27	2061
2✖120	1.2	2.1	29	2567
3✖1.5	0.7	1.8	10	127
3✖2.5	0.7	1.8	11	167
3✖4	0.7	1.8	12	221
3✖6	0.7	1.8	13	293
3✖10	0.7	1.8	16	445
3✖16	0.7	1.8	18	647
3✖25	0.9	1.8	22	959
3✖35	0.9	1.8	24	1274
3✖50	1.0	1.8	24	1590
3✖70	1.1	1.9	28	2228
3✖95	1.1	2.0	31	3015
3✖120	1.2	2.1	34	3763

Packing & Delivery

Company Profile

Shandong Jinyu Cable Co., Ltd. is located in Yanggu, the ancient city of a thousand years, the capital of Dongyi and the hometown of Wusong. It is adjacent to the Yellow River in the south, Shuicheng in the north, the German-Shanghai Expressway in the west, the Beijing-Kowloon High-speed Railway to the east, and the Beijing-Hangzhou Grand Canal running through the entire territory. The company integrates scientific research, production, and sales. It produces power cables, high-voltage cables, overhead cables, control cables, flame-retardant and fire-resistant cables, low-smoke and halogen-free cables and other products. The production equipment, complete testing equipment, dozens of varieties and hundreds of specifications of products are sold well at home and abroad and are trusted by users.The company adheres to the brand strategy, exerts the advantages of the Yanggu cable brand, and the Everbright Yanggu Yuanhui cable brand. All the staff wholeheartedly welcome you to come to the company for guidance and business negotiation!

Work Shop

Certifications

1. What is the minimum order quantity? If you insist on buying one piece, or you only need one piece, we are likely to produce MOQ for you in batches.

2. How to get samples to check the quality? How long can I get the samples?

After the price is confirmed, samples can be provided for your evaluation. After confirming the sample details, the samples will be ready for delivery within 3-7 days, and sent to you by courier, and arrive within 3-5 days.

3. Which payment method does your company accept? We accept wire transfer, letter of credit, Western Union.

4. What are your company's shipping terms and delivery time? 20-30 days for bulk, 5-10 working days for inventory.

5.Do you have a discount? We will do our best to provide you with these services at the best price and quality service.
