SWA Armoured 4 Core XLPE Power Cable Aluminum Conductor 240mm XLPE Flexible Cable

Brand Name:	Yuanhui
Model Number:	YJLV YJLV22 YJLV32
MOQ:	100 meters
Price:	$3.25/meters 100-999 meters
Packaging Details:	Ironwood shaft packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

ISO CCC CE

Insulation Material:

Lszh XLPE

Type:

LOW VOLTAGE High Voltage Medium Voltage

Application:

Industrial Construction Underground Power Station

Conductor Material:

Aluminum

Jacket:

Size:

As Requirments

Product Name:

YJV YJV22 YJV23 XLPE Power Cable

Rated Voltage:

1-35KV 0.6/1KV

Standard:

IEC 60227

Certificate:

ISO9001/CCC/CE

Core:

1/2/3/4/3+1/5/3+2/4+1

Package:

Iron-wooden Drum

Length:

Customized Meters

Armour:

SWA STA AWA ATA

Cross Section:

1.5mm-600mm2

Sample:

Availaible

Supply Ability:

50000 meters per week

Highlight:

4 Core XLPE Power Cable

Aluminum Conductor XLPE Power Cable

240mm XLPE Flexible Cable

Product Description

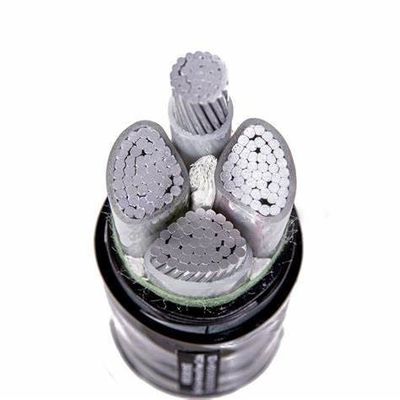

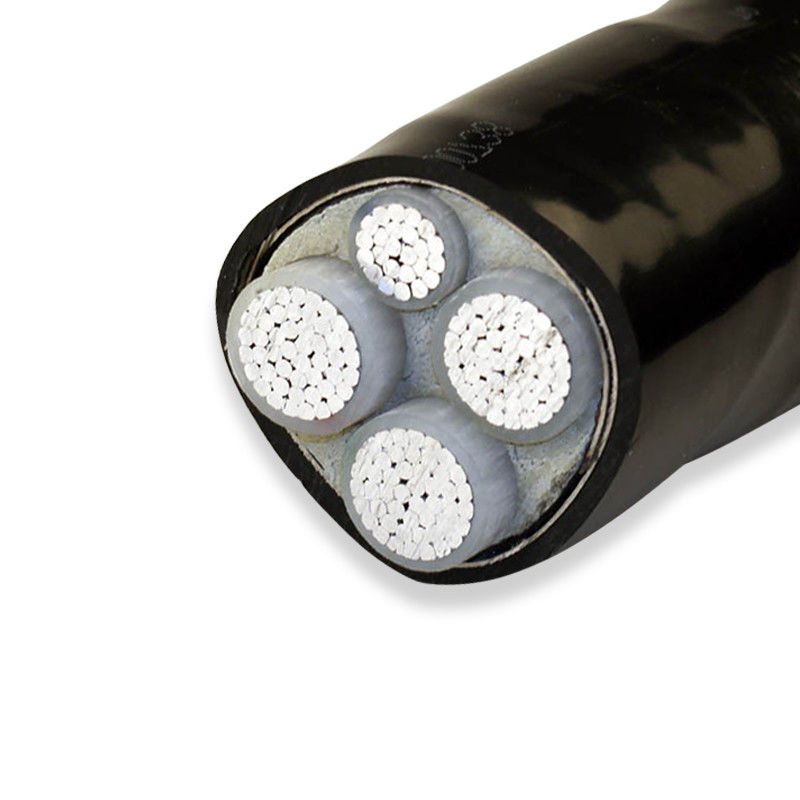

SWA Armoured 4 Core XLPE Insulated Power Cable Aluminum Conductor 35mm-240mm

Product Description

1. Conductor

This power cable features an aluminum conductor. Aluminum is a cost-effective choice for conductors while still providing good electrical conductivity. The cable is available in sizes ranging from 35mm² to 240mm², offering flexibility for different power transmission requirements. Whether for medium-sized industrial applications or larger-scale projects, there is a suitable conductor size to meet specific needs.

2. Insulation

The insulation material used is cross-linked polyethylene (XLPE). XLPE insulation offers excellent electrical insulation properties, ensuring the safe transmission of power. It is highly resistant to heat, moisture, and chemicals, making it suitable for a wide range of environments. This insulation provides long-term reliability and durability, reducing the risk of electrical failures.

3. Four Cores

The cable has four cores, which allows for the transmission of multiple electrical phases or for specific applications that require multiple conductors. The four cores are insulated from each other to prevent electrical interference and ensure proper functioning. This configuration is commonly used in industrial power distribution systems.

4. Steel Wire Armoured (SWA)

The cable is armoured with steel wire, providing mechanical protection. The SWA sheath enhances the cable's durability and resistance to external forces such as impacts, abrasion, and crushing. It also offers additional protection against rodent damage and vandalism. This makes the cable suitable for installation in harsh environments and areas where there is a risk of mechanical damage.

5. Applications

This SWA armoured 4-core XLPE insulated power cable with aluminum conductor is ideal for a variety of industrial applications. It can be used for power distribution in factories, warehouses, mines, and construction sites. The cable is suitable for both indoor and outdoor installations, and its armoured construction makes it particularly useful for underground or exposed installations.

For example, it can be used to connect electrical panels to machinery, equipment, and lighting systems. The cable's reliable performance and durability make it a trusted choice for industrial power transmission needs.

Specification

Norminal cross section	Reference overall diameter of cable	Permissible A mpacily				Reference weight of cable
		A
		In air		In ground
MM²	MM	CU	AL	CU	AL	Kg/km
4X2.5	11.8	29	22	38	29	211	148
4X4	13.0	38	29	50	38	283	182
4X6	14.2	49	37	62	47	376	225
4X10	16.7	67	50	84	63	567	314
4X16	19.1	88	66	109	82	829	424
4X25	23.2	119	90	142	107	1249	618
4X35	25.5	146	110	170	129	1689	804
4X50	26.2	173	128	201	151	2146	916
4X70	28.9	218	164	245	185	2944	1219
4X95	32.5	271	201	294	223	3903	1559
4X120	35.9	315	234	333	253	4967	1956
4X150	40.2	366	272	374	321	6133	2413
4X185	44.4	422	315	421	481	7600	3008
4X240	49.4	486	377	489	425	9743	3784
4X300	56.0	569	440	555		12271	4716
4X400	67.9	686		628		16248

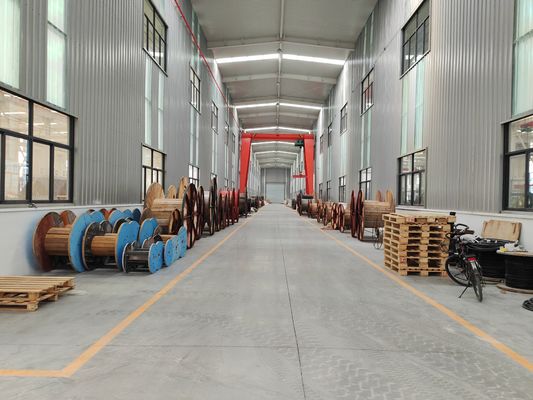

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

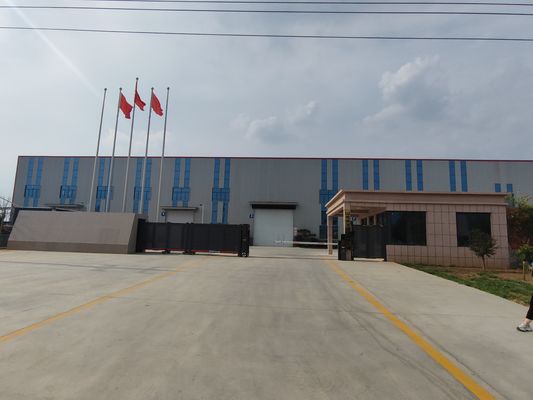

Company Profile

Shandong Jinyu Cable Co., Ltd. is located in Yanggu, the ancient city of a thousand years, the capital of Dongyi and the hometown of Wusong. It is adjacent to the Yellow River in the south, Shuicheng in the north, the German-Shanghai Expressway in the west, the Beijing-Kowloon High-speed Railway to the east, and the Beijing-Hangzhou Grand Canal running through the entire territory. The company integrates scientific research, production, and sales. It produces power cables, high-voltage cables, overhead cables, control cables, flame-retardant and fire-resistant cables, low-smoke and halogen-free cables and other products. The production equipment, complete testing equipment, dozens of varieties and hundreds of specifications of products are sold well at home and abroad and are trusted by users.The company adheres to the brand strategy, exerts the advantages of the Yanggu cable brand, and the Ever bright Yanggu Yuanhui cable brand. All the staff wholeheartedly welcome you to come to the company for guidance and business negotiation!

FAQ

1. What is the minimum order quantity?

If you insist on buying one piece, or you only need one piece, we are likely to produce MOQ for you in batches.

2. How to get samples to check the quality? How long can I get the samples?

After the price is confirmed, samples can be provided for your evaluation. After confirming the sample details, the samples will be ready for delivery within 3-7 days, and sent to you by courier, and arrive within 3-5 days.

3. Which payment method does your company accept?

We accept wire transfer, letter of credit, Western Union.

4. What are your company's shipping terms and delivery time?

20-30 days for bulk, 5-10 working days for inventory.

5.Do you have a discount?

We will do our best to provide you with these services at the best price and quality service
