35mm Aluminum 2 Core Power Cable underground For Industrial Construction

Brand Name:	Yuanhui
Model Number:	YJLV YJLV22 YJLV32
MOQ:	100 meters
Price:	$3.25/meters 100-999 meters
Packaging Details:	Ironwood shaft packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

ISO CE CCC

Insulation Material:

Lszh XLPE

Type:

LOW VOLTAGE High Voltage Medium Voltage

Application:

Industrial Construction Underground Power Station

Conductor Material:

Aluminum

Jacket:

Size:

As Requirments

Product Name:

YJV YJV22 YJV23 XLPE Power Cable

Rated Voltage:

1-35KV 0.6/1KV

Standard:

IEC 60227

Certificate:

ISO9001/CCC/CE

Core:

1/2/3/4/3+1/5/3+2/4+1

Package:

Iron-wooden Drum

Length:

Customized Meters

Armour:

SWA STA AWA ATA

Cross Section:

1.5mm-600mm2

Sample:

Availaible

Supply Ability:

50000 meters per week

Highlight:

Aluminum 2 Core Power Cable

35mm 2 Core Power Cable

Construction XLPE Insulated Wire

Product Description

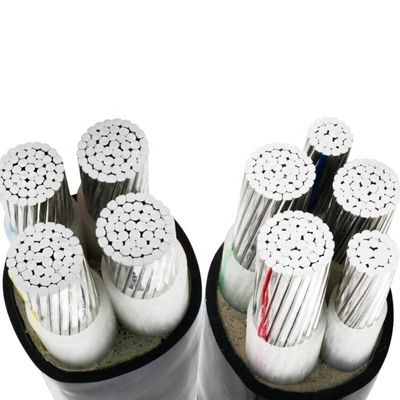

16/25/35mm 2/3/4 Core Aluminum Power Cable for Industrial Construction Project

Product Description

1. Conductor Material and Sizes

This aluminum power cable is designed for industrial construction projects. It comes in three different cross-sectional sizes: 16mm², 25mm², and 35mm². The use of aluminum as the conductor material offers several advantages. Aluminum is a cost-effective alternative to copper while still providing good electrical conductivity. It is lightweight, making it easier to handle and install, especially in large-scale construction projects where cables need to be routed over long distances.

2. Number of Cores

The cable is available in 2-core, 3-core, and 4-core configurations. The choice of the number of cores depends on the specific electrical requirements of the industrial construction project. For example, a 2-core cable might be used for single-phase power supply, while a 3-core or 4-core cable could be used for three-phase power distribution.

3. Industrial Construction Applications

This power cable is ideal for a wide range of industrial construction applications. In industrial settings, reliable power supply is crucial for the operation of machinery, equipment, and lighting systems. The cable can be used to connect power sources to various electrical loads within the construction site, such as motors, pumps, welders, and other power tools.

It is also suitable for outdoor installations, as it is designed to withstand harsh environmental conditions. The cable's insulation and sheath provide protection against moisture, dust, and mechanical damage, ensuring long-term durability and reliable performance.

4. Quality and Reliability

When it comes to industrial construction projects, quality and reliability are of utmost importance. This aluminum power cable is manufactured to meet strict industry standards, ensuring its performance and safety. The insulation material used is of high quality, providing excellent electrical insulation properties and reducing the risk of electrical faults.

The cable is also tested for durability and strength to ensure it can withstand the rigors of industrial construction environments. With its reliable construction and quality materials, this power cable is a trusted choice for industrial construction projects.

Specification

Norminal cross section	Reference overall diameter of cable	Permissible A mpacily				Reference weight of cable
		A
		In air		In ground
MM²	MM	CU	AL	CU	AL	Kg/km
4X2.5	11.8	29	22	38	29	211	148
4X4	13.0	38	29	50	38	283	182
4X6	14.2	49	37	62	47	376	225
4X10	16.7	67	50	84	63	567	314
4X16	19.1	88	66	109	82	829	424
4X25	23.2	119	90	142	107	1249	618
4X35	25.5	146	110	170	129	1689	804
4X50	26.2	173	128	201	151	2146	916
4X70	28.9	218	164	245	185	2944	1219
4X95	32.5	271	201	294	223	3903	1559
4X120	35.9	315	234	333	253	4967	1956
4X150	40.2	366	272	374	321	6133	2413
4X185	44.4	422	315	421	481	7600	3008
4X240	49.4	486	377	489	425	9743	3784
4X300	56.0	569	440	555		12271	4716
4X400	67.9	686		628		16248

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

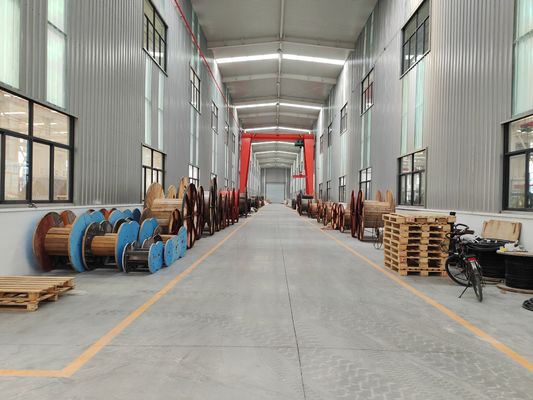

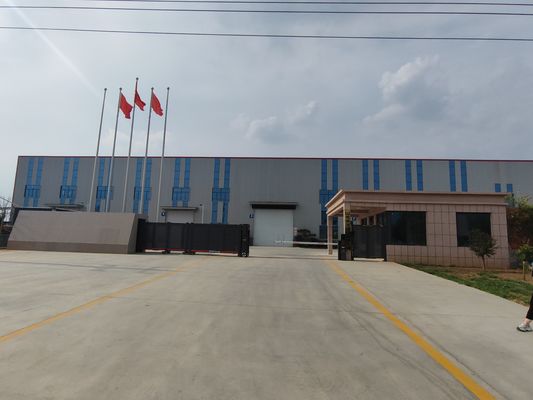

Company Profile

Shandong Jinyu Cable Co., Ltd. is located in Yanggu, the ancient city of a thousand years, the capital of Dongyi and the hometown of Wusong. It is adjacent to the Yellow River in the south, Shuicheng in the north, the German-Shanghai Expressway in the west, the Beijing-Kowloon High-speed Railway to the east, and the Beijing-Hangzhou Grand Canal running through the entire territory. The company integrates scientific research, production, and sales. It produces power cables, high-voltage cables, overhead cables, control cables, flame-retardant and fire-resistant cables, low-smoke and halogen-free cables and other products. The production equipment, complete testing equipment, dozens of varieties and hundreds of specifications of products are sold well at home and abroad and are trusted by users.The company adheres to the brand strategy, exerts the advantages of the Yanggu cable brand, and the Ever bright Yanggu Yuanhui cable brand. All the staff wholeheartedly welcome you to come to the company for guidance and business negotiation!

FAQ

1. What is the minimum order quantity?

If you insist on buying one piece, or you only need one piece, we are likely to produce MOQ for you in batches.

2. How to get samples to check the quality? How long can I get the samples?

After the price is confirmed, samples can be provided for your evaluation. After confirming the sample details, the samples will be ready for delivery within 3-7 days, and sent to you by courier, and arrive within 3-5 days.

3. Which payment method does your company accept?

We accept wire transfer, letter of credit, Western Union.

4. What are your company's shipping terms and delivery time?

20-30 days for bulk, 5-10 working days for inventory.

5.Do you have a discount?

We will do our best to provide you with these services at the best price and quality service.
