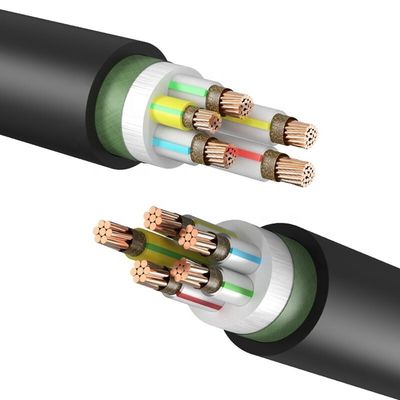

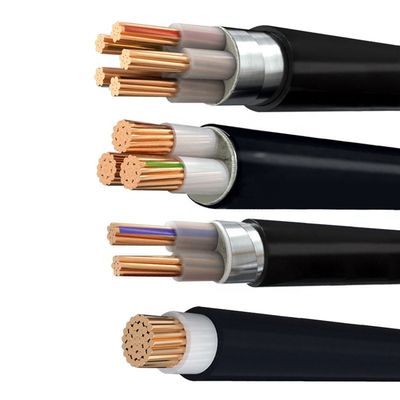

Power Transmission High Voltage Insulated PVC Jacket Copper Wires and Cables 0.6/1KV

Brand Name: Yuanhui
Model Number: YJV
MOQ: 1000 meters
Price: $2.70/meters 1000-1999 meters
Detail Information
Product Description
Detail Information
Place of Origin:
Shandong, China
Certification:
CE CCC ISO
Type:
Insulated
Application:
Underground
Conductor Material:
Copper
Conductor Type:
Stranded
Insulation Material:
Xlpe
Product Name:
XLPE
Color:
Customer's Requirement
Conductor:
Copper Core
Packing:
100m/roll
Insulation:
XLPE Insulation Cable
Jacket:
PVC Jacket
Material:
Copper
Product Description
Power Transmission High Voltage Insulated PVC Jacket Copper Wires and Cables 0.6/1KV 0
Power Transmission High Voltage Insulated PVC Jacket Copper Wires and Cables 0.6/1KV 1
Power Transmission High Voltage Insulated PVC Jacket Copper Wires and Cables 0.6/1KV 2
Power Transmission High Voltage Insulated PVC Jacket Copper Wires and Cables 0.6/1KV 3
Power Transmission High Voltage Insulated PVC Jacket Copper Wires and Cables 0.6/1KV 4
Type And Name
Type
Designation
Applications
YJV
Copper conductor,XLPE insulated,PVC sheathed power cable






For laying indoors,in tunnel or cable trench,unable to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct.
YJLV
Aluminum conductor,XLPE insulated,PVC sheathed power cable
YJY
Copper conductor, XLPE insulated,PE sheathed power cable
YJLY
Aluminum conductor, XLPE insulated,PE sheathed power cable
YJV22
Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable





For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct.
YJLV22
Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable
YJV23
Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable
YJLV23
Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable
YJV32
Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable








For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force.
YJLV32
Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable
YJV33
Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable
YJLV33
Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable
Construction
Power Transmission High Voltage Insulated PVC Jacket Copper Wires and Cables 0.6/1KV 5
-Conductors
The conductors shall be either of Class 1 or Class 2 of plain accordance with IEC 60228.

-Insulation
PVC Insulation material and thickness shall be as per IEC 60502-1, PVC material shall be Type A as per IEC 60502-1.-Assembly / Inner Covering
The inner coverings may be extruded or lapped.
-Armour
Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1,

-Outer Sheath
Outer sheath shall be of extruded PVC as per IEC 60502-1, Polyethylene, Halogen free compound.
Polychloroprene, chlorosulfonated polyethylene or similar polymers.
-Fire Performance of Cable Sheaths
Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22,
IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.
Applications
Power Transmission High Voltage Insulated PVC Jacket Copper Wires and Cables 0.6/1KV 6
Company Profile
Power Transmission High Voltage Insulated PVC Jacket Copper Wires and Cables 0.6/1KV 7

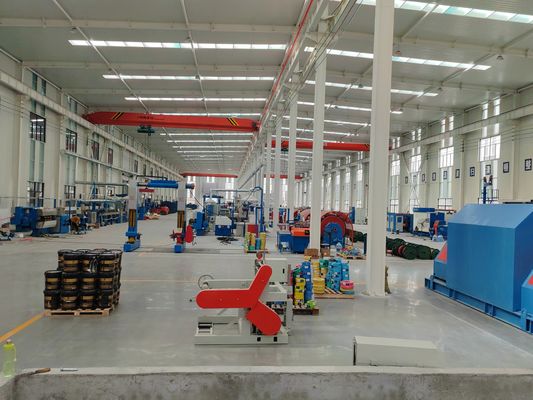

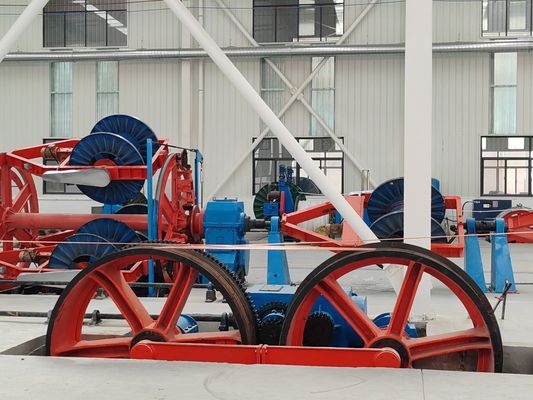

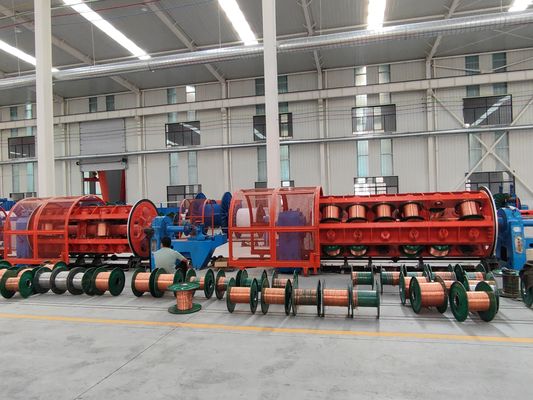

factory
Power Transmission High Voltage Insulated PVC Jacket Copper Wires and Cables 0.6/1KV 8
Power Transmission High Voltage Insulated PVC Jacket Copper Wires and Cables 0.6/1KV 9
Power Transmission High Voltage Insulated PVC Jacket Copper Wires and Cables 0.6/1KV 10

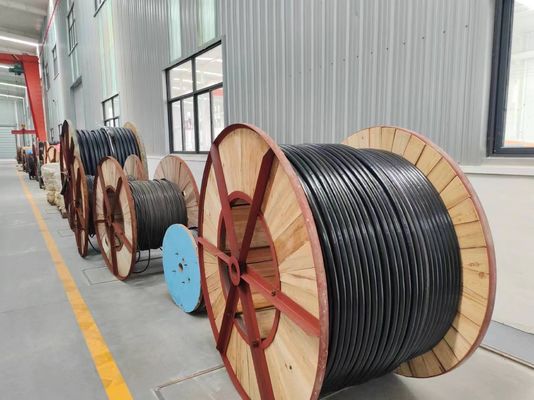

Product packaging
Power Transmission High Voltage Insulated PVC Jacket Copper Wires and Cables 0.6/1KV 11
Power Transmission High Voltage Insulated PVC Jacket Copper Wires and Cables 0.6/1KV 12
Payment & Delivery
Package: Generally, pack in rolls or wooden drums. Accept customized service for free. Rolls, Wooden Drums, Steel Drums, Reels

Delivery: Both 20GP containers and 40GP containers are supplied. Air transportation, Sea transportation, Express delivery.
Power Transmission High Voltage Insulated PVC Jacket Copper Wires and Cables 0.6/1KV 13
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.

Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.

Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.

Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.

Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.

Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
Tags:
