Good price online

products details

Home > Products >
XLPE Power Cable
>
1.5mm 2.5mm 4mm 6mm PVC Insulation Copper Electricity Electrical Cable for Building
All Category

PVC Power Cable

XLPE Power Cable

Low Voltage Cable

PV Solar Cable

Fire Resistance Cable

EV Charging Cable

Control Cable

ABC Cable

Mining Power Cable

Overhead Electric Cable

Shielded Cable

Fiber Optic Cable

Irrigation Cable
Contact Us
Mr. Mark
yuanhuimark@163.com
008618334797787
Contact Now

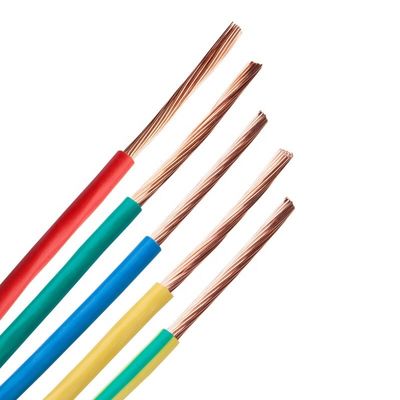

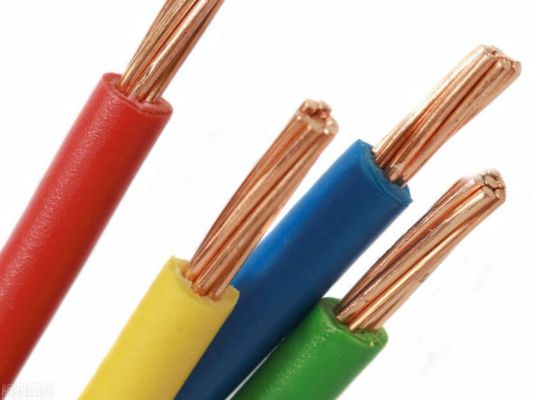

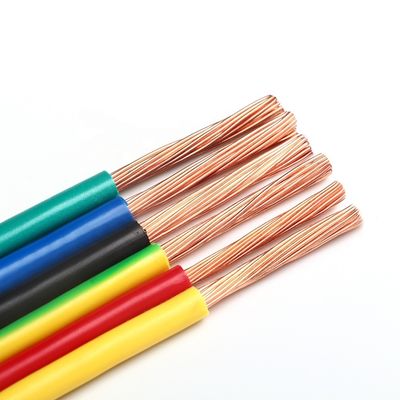

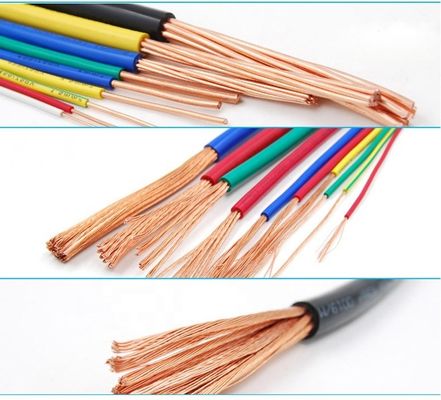

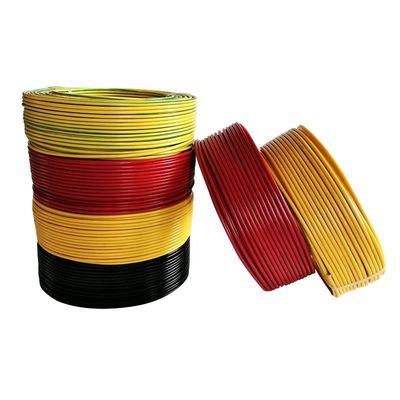

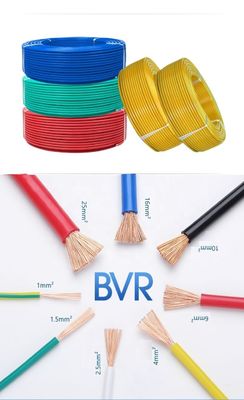

1.5mm 2.5mm 4mm 6mm PVC Insulation Copper Electricity Electrical Cable for Building
  • name
  • name
  • name
  • name
  • name
  • name

1.5mm 2.5mm 4mm 6mm PVC Insulation Copper Electricity Electrical Cable for Building

Brand Name: Yuanhui
Model Number: BVR
MOQ: 500 meters
Price: $0.14/meters
Detail Information
Product Description
Detail Information
Place of Origin:
Shandong, China
Certification:
CE CCC ISO
Type:
Insulated
Application:
Underground
Conductor Material:
Copper, Copper
Conductor Type:
Stranded, Copper Conductor
Insulation Material:
PVC, PVC Insulation
Rated Voltage:
300V-500V
Product Name:
Copper Core PVC Insulation Wire
Color:
Customized Color
Voltage:
300-600V
Insulation:
PVC Insulation Cable
Conductor:
Copper
Size:
Customized Size
Product Description
1.5mm 2.5mm 4mm 6mm PVC Insulation Copper Electricity Electrical Cable for Building 0
Product Description
1.5mm 2.5mm 4mm 6mm PVC Insulation Copper Electricity Electrical Cable for Building 1
1.5mm 2.5mm 4mm 6mm PVC Insulation Copper Electricity Electrical Cable for Building 2
Description:
1. standard IEC60227:1993, BS6004,VDE0281
2. 300/300v 300/500v 450/750v
3. PVC sheathed , color available
4. PVC temperature: -20 °C to +70 °C , also can be 90 °C and 105 °C PVC

Application:
The cable is suitable to be fixed wiring of power device, power lighting of home electric equipment and instrument, inner wiring of electric equipment, instrument, Electronic equipment, automation device etc.
Specification
Copper conductor PVC insulated flexible wire
标称截面（mm²）
Nominal section
线芯结构（mm）
Number/diameter of core
平均外径（mm）
Average dia
参考重量（kg/km)
Reference weight
20℃导体电阻<(Ω/km)
Conductor resistance at 20℃（Ω/km）
2.5
19/0.41
4.2
34.7
7.41
4
19/0.52
4.8
51.4
4.61
6
19/0.64
5.6
73.6
3.08
10
49/0.52
7.6
129
1.83
16
49/0.64
8.8
186
1.91
25
98/0.58
11.0
306
1.20
35
133/0.58
12.5
403
0.868
50
133/0.68
14.5
553
0.641
70
189/0.68
16.5
764
0.443
Company Profile
1.5mm 2.5mm 4mm 6mm PVC Insulation Copper Electricity Electrical Cable for Building 3
1.5mm 2.5mm 4mm 6mm PVC Insulation Copper Electricity Electrical Cable for Building 4
1.5mm 2.5mm 4mm 6mm PVC Insulation Copper Electricity Electrical Cable for Building 5
Shandong Jinyu Cable Co., Ltd. is located in Yanggu, the ancient city of a thousand years, the capital of Dongyi and the hometown of Wusong. It is adjacent to the Yellow River in the south, Shuicheng in the north, the German-Shanghai Expressway in the west, the Beijing-Kowloon High-speed Railway to the east, and the Beijing-Hangzhou Grand Canal running through the entire territory. The company integrates scientific research, production, and sales. It produces power cables, high-voltage cables, overhead cables, control cables, flame-retardant and fire-resistant cables, low-smoke and halogen-free cables and other products. The production equipment, complete testing equipment, dozens of varieties and hundreds of specifications of products are sold well at home and abroad and are trusted by users. The company adheres to the brand strategy, exerts the advantages of the Yanggu cable brand, and the Everbright Yanggu Yuanhui cable brand. All the staff wholeheartedly welcome you to come to the company for guidance and business negotiation!
1.5mm 2.5mm 4mm 6mm PVC Insulation Copper Electricity Electrical Cable for Building 6
1.5mm 2.5mm 4mm 6mm PVC Insulation Copper Electricity Electrical Cable for Building 7
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1.5mm 2.5mm 4mm 6mm PVC Insulation Copper Electricity Electrical Cable for Building 8
1.5mm 2.5mm 4mm 6mm PVC Insulation Copper Electricity Electrical Cable for Building 9
1.5mm 2.5mm 4mm 6mm PVC Insulation Copper Electricity Electrical Cable for Building 10
1.5mm 2.5mm 4mm 6mm PVC Insulation Copper Electricity Electrical Cable for Building 11
FAQ
1. who are we?
We are based in Shandong, China, start from 2014,sell to Eastern Asia(30.00%),South America(20.00%),Eastern Europe(10.00%),North America(10.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Wire and Cable,power cable,High voltage cable,Overhead cable

4. why should you buy from us not from other suppliers?
WE are manufacturer based of all kinds of different cable wires. The quality and price is competitively. We have professional sales manager and technology on producing.

5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
