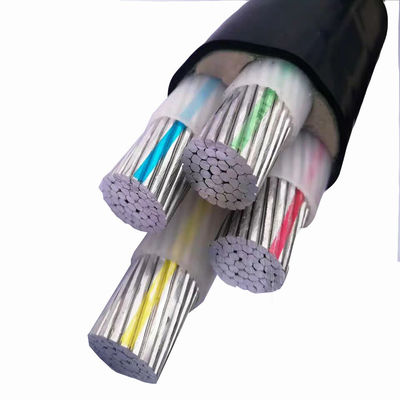

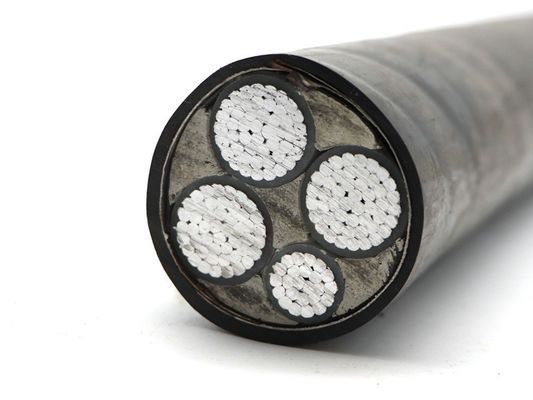

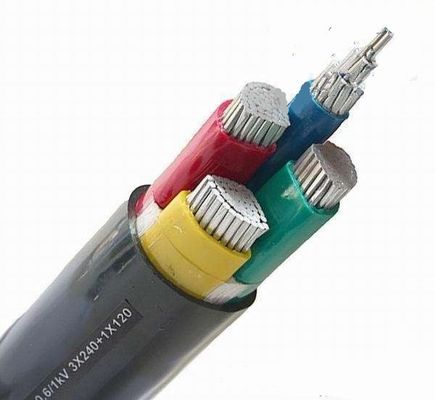

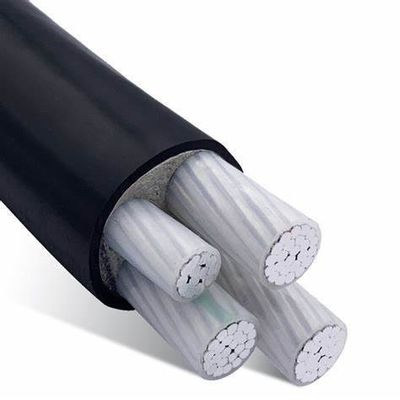

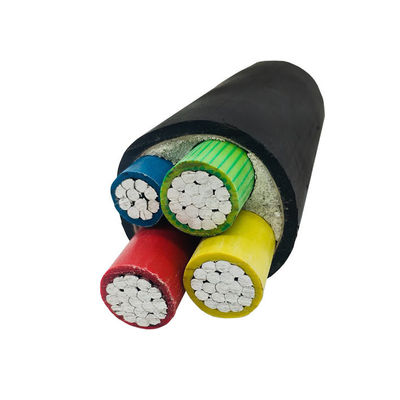

Insulated XLPE Cable Wire 4 Core 35mm 50mm 70mm 95mm 120mm 185mm 240mm Aluminium Core

Brand Name:	Yuanhui
Model Number:	YJLV22
MOQ:	500 meters
Price:	$0.25/meters >=500 meters
Packaging Details:	China manufacturer Power Cables Wholesale In Dubai price packaging in Standard wooden drum,steel drum,others as your request. Delivery time:About 5 to 10 working days to our sea port CHINA. Port Qingdao

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

Type:

Insulated

Application:

Underground, Household Electrical Application

Conductor Material:

Aluminum, Aluminum

Conductor Type:

Stranded

Insulation Material:

XLPE, XLPE Cable Wire

Rated Voltage:

0.6/1KV

Size:

0.5mm2-1000mm2

Feature:

Excellent Resistance

Standard:

GB/T12706

Sample:

Freely Sample

Core:

Multicore

Specification:

1.5mm -400mm

Port:

QINGDAO Port

Supply Ability:

3000 Meter/Meters per Week

Product Description

Applications:
PVC insulated power cable is suitable for laying fixed in power transmission and distribution lines with A.C. 50HZ and rated voltage of 0.6/1kV.
XLPE insulated power cable has a number of advantages compared with paper insulated and PVC insulated cables. XLPE cable has high electric property, mechanical property, heat aging performance, environmental stress crack resistance, chemical corrosion resistance, and it also has simple structure, convenient operation and it is not restricted by laying in large difference of level. It can be applied in high temperature of 90 degree for a long time.
1. Max temperature for Long-time working:≤90°C
2. Installing temperature: ≥0°C
3. Max short-circuit (Not more than5 Sec) temperature: 250°C
4. Unable be laid without the limit of fall with enough mechanical pull,Single core cable can not be laid in iron tube or fixed by circled iron tools around cables

Specification

The detail technical data voltage armoured power cable as below for reference,any customized is available.

Nom.cross section mm²	Nom. thickness of insulation mm	Nom. thickness of steel tape mm	Nom. thickness of sheath mm	Cable weight km/kg	Max. D.c, resistance of conductor at 20℃ Ω/km
3X2.5	0.7	1.8	11.3	111.4	12.1
3X4	0.7	1.8	12.2	135.8	7.41
3X6	0.7	1.8	13.4	167	4.61
3X10	0.7	1.8	16.1	238.3	3.08
3X16	0.7	1.8	18.4	318.2	1.91
3X25	0.9	1.8	22.1	463.7	1.2
3X35	0.9	1.8	24.6	584	0.868
3X50	1	1.8	27.9	752.2	0.641
3X70	1.1	1.9	32.8	1041	0.443
3X95	1.1	2	37.1	1359	0.32
3X120	1.2	2.1	41.2	1684	0.253
3X150	1.4	2.3	45.8	2084	0.206
3X185	1.6	2.4	50.9	2561	0.164
3X240	1.7	2.6	57.4	3284	0.125
3X300	1.8	2.8	63.4	4049	0.1

Packing & Delivery

PACKAGING FLOW

Company Profile

Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.

Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.

Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.

Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.

Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.

Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
