35kV HV Power Cable Stranded Conductor Type 200mm 400mm Underground Insulated Line
  • name
  • name
  • name
  • name
  • name
  • name

35kV HV Power Cable Stranded Conductor Type 200mm 400mm Underground Insulated Line

Brand Name: Yuanhui
Model Number: YJV22
MOQ: 500 meters
Price: $2.25/meters >=500 meters
Packaging Details: China manufacturer Power Cables Wholesale In Dubai price
packaging in Standard wooden drum,steel drum,others as your request.
Delivery time:About 5 to 10 working days to our sea port CHINA.
Detail Information
Product Description
Detail Information
Place of Origin:
Shandong, China
Certification:
CE
Type:
Insulated
Application:
Underground
Conductor Material:
Copper
Conductor Type:
Stranded
Insulation Material:
XLPE
Rated Voltage:
35KV
Product Name:
Copper Core PVC Insulation Wire
Jacket:
PVC Jacket
Rated Voltage:
1-35KV
Reference Standard:
GB5023-97 IEC60227
Size:
1-1400mm2
Packing:
100m/300m/500m/roll
Rated Temperature:
70'C
Color:
Black
Advantage:
22 Years Production Experience
Port:
QINGDAO Port
Supply Ability:
30000 Meter/Meters per Week
Product Description
Product Description
35kV HV Power Cable Stranded Conductor Type 200mm 400mm Underground Insulated Line 0
Specification
CU/XLPE/PVC AMOURED
1. CE approval of IEC60502-1;
2. Excellent electrical property of high quality CU conductor;
3. Low smoke zero-Halogen of XLPE insulation, anti-flaming;
4. High Mechanical strength. powerful resistance to chemical attack;
5. Special features such as flame retardant PVC supllied;
Nom Cross Section Area
Conductor diameter
Insulation thickness
Sheath thickness
Aprox. aell diameter of cable
Aprox. weight of cable
Max.DC Resistance at 20℃
mm²
mm
mm
mm
mm
kg/km
Ω/km
4X1.5
1.38
0.7
1.8
11.1
145
12.1
4X2.5
1.78
0.7
1.8
12.1
194
7.41
4X4
2.25
0.7
1.8
13.2
261
4.61
4X6
2.76
0.7
1.8
14.5
352
3.08
4X10
4.1
0.7
1.8
17.6
547
1.83
4X16
5.1
0.7
1.8
20.1
799
1.15
4X25
6.4
0.9
1.8
24.3
1222
0.727
4X35
7.6
0.9
1.8
27.1
1626
0.524
4X50
7.5
1.0
1.9
26.2
2005
0.387
4X70
8.6
1.1
2.0
31.9
2855
0.268
4X95
10.8
1.1
2.1
35.9
3843
0.193
4X120
12.9
1.2
2.3
42.8
5052
0.153
4X150
14.5
1.4
2.4
47.9
6336
0.124
4X185
16.0
1.6
2.6
52.9
7569
0.0991
4X240
18.3
1.7
2.8
59.3
9809
0.0754
4X300
20.5
1.8
3.0
65.5
12467
0.0601

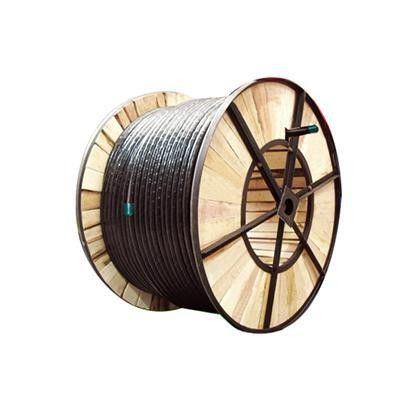

Packing & Delivery
35kV HV Power Cable Stranded Conductor Type 200mm 400mm Underground Insulated Line 1
35kV HV Power Cable Stranded Conductor Type 200mm 400mm Underground Insulated Line 2
Carton, Wooden Box, Wooden Roll
Company Profile
35kV HV Power Cable Stranded Conductor Type 200mm 400mm Underground Insulated Line 3
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.

Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.

Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.

Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.

Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.

Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
