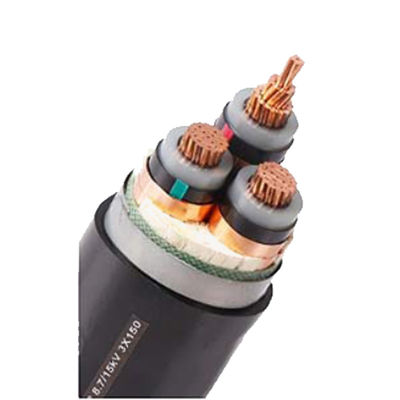

IEC 60502 Approved XLPE Cable for 35kV Rated Voltage in Power Plants
  • name
  • name
  • name
  • name

IEC 60502 Approved XLPE Cable for 35kV Rated Voltage in Power Plants

Brand Name: Yuanhui
Model Number: XLPE Cable
MOQ: 1000meters
Packaging Details: Normal Package
Payment Terms: T/T, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, CCC, ISO
Insulation Material:
XLPE
Insulation:
XLPE
Outer Diameter:
6mm - 120mm
Number Of Cores:
3
Conductor Size:
1.5mm² - 1000mm²
Application:
Power Transmission And Distribution
Grade:
Austentic And Duplex Steel
Color:
Black Or Customized
Conductor Material:
Copper
Voltage Rating:
Up To 35kV
Jacket:
PVC
Armour:
Steel Wire Armored
Armored:
Steel Tape Armored
Armour Type:
Steel Tape Or Wire
Sheath Material:
PVC Or PE
Supply Ability:
5000000meters per month
Product Description

Harmonized Standard XLPE insulated power cable for rated voltage up to and including 35kV

This product applies for power transmission in power plant and electric power circuit of rated voltage up to and including 35kV. XLPE insulated power cable hasoutstanding mechanical property, excellent electrical and anti-corrosion properties. It has other advantages, such as it is light and convenient for transportation and laying, and not restricted for height difference. Thus it is widely used in metal refining, electric power, petro-chem enterprises and urban network construction etc.
Standard and Approval:IEC 60502
Technical Characteristics:
– Working voltage(kV):0.6/1,1.8/3,3.6/6,6/6,6/10,8.7/10,8.7/15,12/20,18/30,21/35,26/35 -Maximum operating temperature of conductor:90℃ -Multicore armored cable: 12 x Ø -Multicore non-armored cable bending radius:15 x Ø – Flexing temperature:≥0℃ – Short circuit temperature: +250º C – Flame retardant: IEC 60332.1
